Holovision Vio 2 (by Barix)

This device must be manually configured.  Do not add MAC Address to Resources.

Step 1: Gather information for each user

Each user has a set of credentials which will be needed to configure each device. For each device that you are configuring, obtain the following from the User tab in your OnSIP Admin Portal:

  • "SIP Address" (Address of Record)
  • "SIP Password"
  • "Auth Username"
  • "Username"
  • "Domain"
  • "Outbound Proxy"

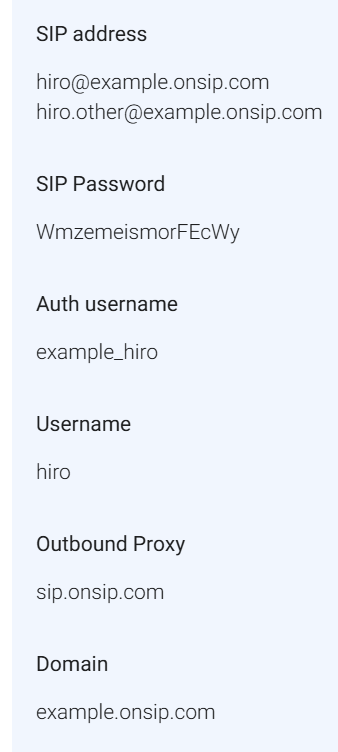

You can find this information in the "User" tab, click on User's name the device will be configured to expand boxes, "Phone Configuration" box:

Phone configuration section


updated July 2019
