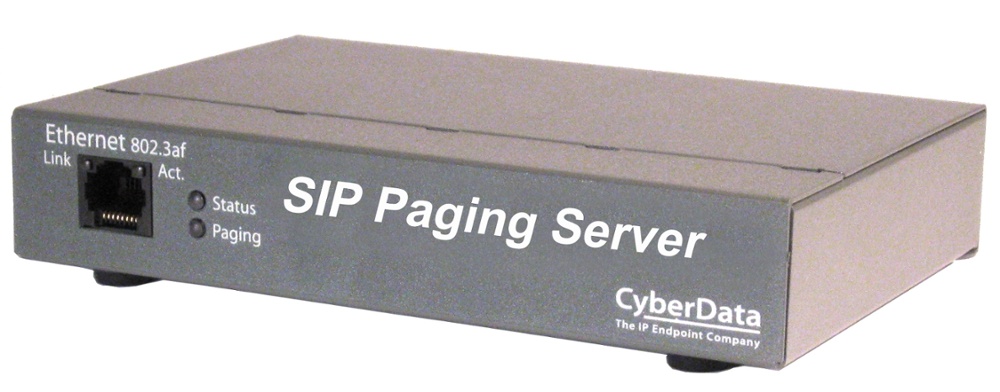

CyberData SIP Paging Server with Bell Scheduler

Check out our Phone Review Here


1. Gather your account credentials.

First, login to your account on the OnSIP Admin Portal and either create a new user, or select an existing user you wish to associate with the CyberData SIP Paging Server.

Under the "Phone Configuration" section of the user, locate the following information:

  • SIP Address (Address of Record)
  • SIP Password
  • Auth Username
  • Username
  • Domain
  • Outbound Proxy

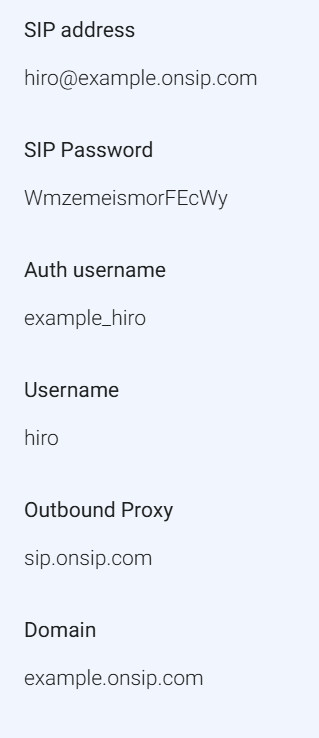

Sample OnSIP User Phone Configuration Details

2. Login to the CyberData SIP Paging Server online.

When the CyberData SIP Paging Server is connected to your LAN, enter the IP address of the device into your Internet browser. This will open the CyberData web portal.

3. Enter information from step 1 under SIP Settings.

Enter the information you gathered in step 1 into the appropriate fields on the SIP Settings page. Make sure to select the fields "Enable SIP operation" and "Register with a SIP server".

  • Primary SIP server: Domain
  • Primary SIP User ID: Username
  • Primary Auth ID: Auth Username
  • Primary SIP Auth Password: SIP Password
  • Remote SIP Port: 5060
  • Local SIP Port: 5060
  • Outbound Proxy: Outbound Proxy
  • Outbound Proxy Port: 5060
SIP Settings - Cyberdata SIP Paging Server with Bell Scheduler

4. Change admin password.

Before going any further, you will absolutely need to change your admin password on the Admin Settings page. When you export the config file from the SIP Paging Server, the SIP password is exposed, and as such, can be easily stolen and manipulated.

Admin Settings - Cyberdata SIP Paging Server with Bell Scheduler

5. Update clock settings.

To update your clock settings, go to Device. Consult the Operations Guide to ensure that you have selected the correct time zone.

Clock Settings - Cyberdata SIP Paging Server with Bell Scheduler

6. Upload audio files.

Go to Audiofiles to set your audio files. You will need to read the Operations Guide in order to get the proper specifications. We recommend Audacity for recording audio messages.

Built-In Audio Files - Cyberdata SIP Paging Server with Bell Scheduler

7. Configure a paging group.

To configure a paging group, go to Pgroup. You will need to provide an IP address, port, and name. We'd advise consulting the Operations Guide for additional instructions on how to customize your paging group. Click on "Save Changes."

Configure Paging Group - Cyberdata SIP Paging Server with Bell Scheduler

8. Configure a scheduled event.

To configure a scheduled event, go to Schedules. Here, you can select the days of the week, time, audio file, number of times you want the message to play, which paging group to assign the event to, and a name.

Configure Scheduled Event - Cyberdata SIP Paging Server with Bell Scheduler

September 2017
