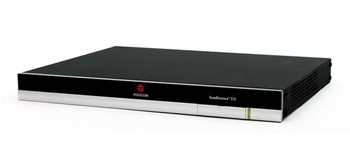

Polycom SoundStructure

January 2018

This device must be manually configured. It is not available on our boot server


Step 1: Gather information for each user.

Each user has a set of credentials which will be needed to configure each phone. For each phone that you are configuring, obtain the following from the OnSIP Admin Portal:

  • SIP Address (Address of Record)
  • SIP Password
  • Auth Username
  • Username
  • Proxy/Domain

You can find this information in the user detail pages under the Users tab in the "Phone Configuration" section.

Phone configuration section

Step 2: Log into your Polycom phone through a web browser

You will need the IP address of the polycom device. Press the following to see current IP: Status > Platform > Network > TCP/IP Parameters and scroll to find IP.  Take note of the IP address. You will need it later. Typical IP address is something like 192.x.x.x or 10.x.x.x for example.  If the phone will not connect, you may need to change the phone to HTTP from HTTPS.

Open a web browser on the computer on the same network as the Polycom device. Type the following into the browser address bar to access the web-based configuration portal:
http://(polycom IP address) where the (Polycom IP address) is the IP address you obtained in Step 1 above.

Admin login: Username > Polycom (note capital "P") is Password > 456

**OnSIP strongly encourages customers to change this universal password after the phone has been registered**

Step 3. Enter your User information from Step 1

Select Settings, then Lines, then Line 1 Identification:

  • "Display Name" > whatever you would like callers to see
  • "Address" > Address of Record / SIP Address
  • "Label"> what you'd like displayed on phone screen

Identification

  • Display Name > Username
  • Address > Address of Record
  • Authentication User ID > Auth Username
  • Authentication Password > SIP Password
  • Label > Extension or Name (your choice)

Outbound Proxy

  • Address > sip.onsip.com

Server 1

  • Address > Domain
