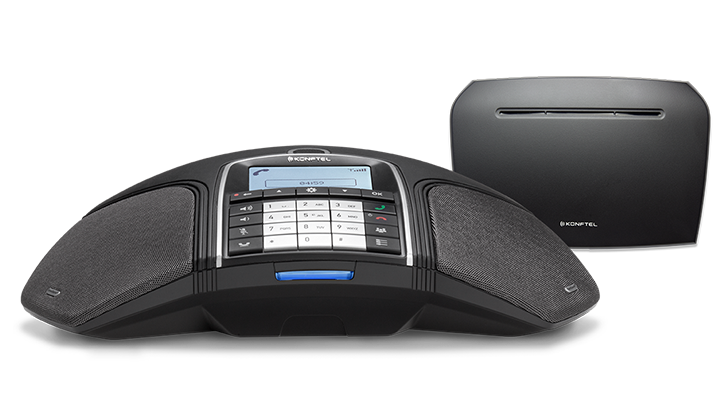

Konftel 300W IP DECT 10





OnSIP only has experience in configuring the Konftel 300W.  We have not actually used them in-house.  If you need information on the functionality of these phones, please reach out to the phone manufacturer and/or their User Guide.

This device must be manually configured.  Do not add MAC Address to Resources.


Step 1: Gather information for each user

Each user has a set of credentials that will be needed to configure each device. For each device that you are configuring, obtain the following from the User tab in your OnSIP Admin Portal:

  • "SIP Address" (Address of Record)
  • "SIP Password"
  • "Auth Username"
  • "Username"
  • "Domain"
  • "Outbound Proxy"

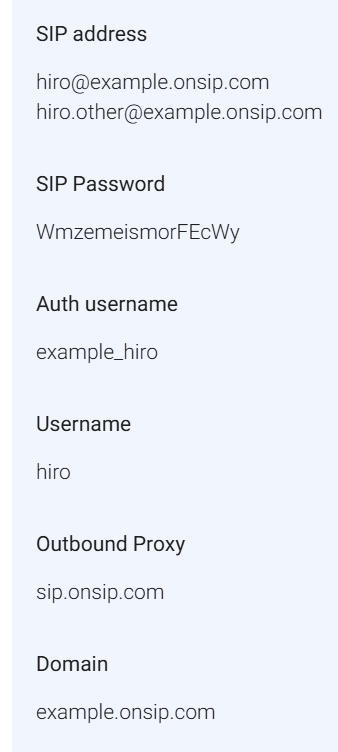

You can find this information in the "User" tab, click on User's name the device will be configured to expand boxes, "Phone Configuration" box:

Phone configuration section

Step 2: Log into your device through a web browser

After you’ve plugged in your device and connected to your LAN, the first thing you’ll need to do is find the IP address of the phone. Press the menu button and then select STATUS > NETWORK to get your IP address.

Enter this IP address into your Internet browser, select ‘admin’ from the ‘Profile’ drop-down menu, and enter in the default PIN 1234 to login.

Step 3: Enter your user information from Step 1

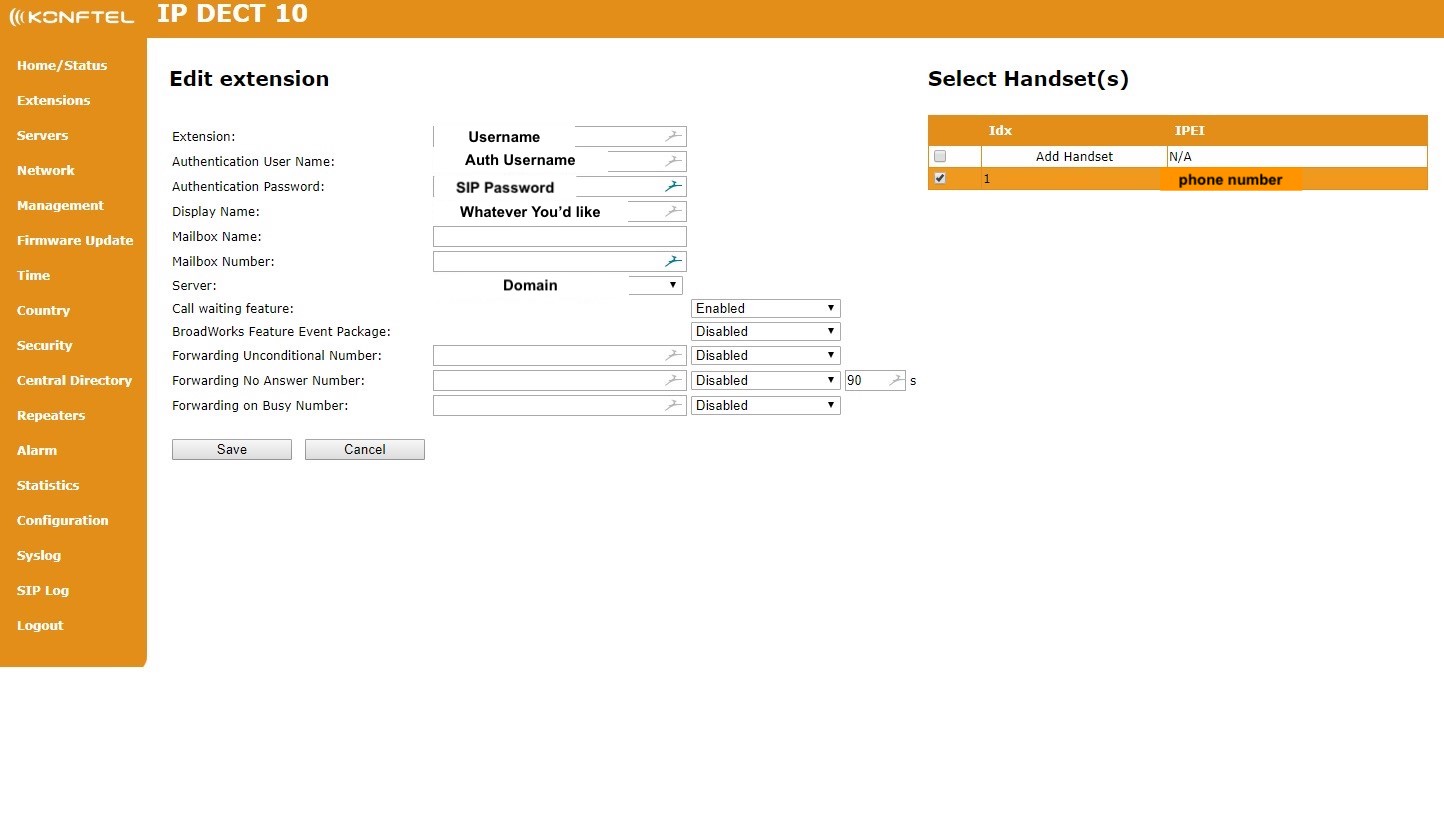

Edit Extension

  • Extension > Username
  • Authentication User Name > Auth Username
  • Authentication Password > SIP Password
  • Display Name > Whatever you'd like
  • Server > Domain
  • Save

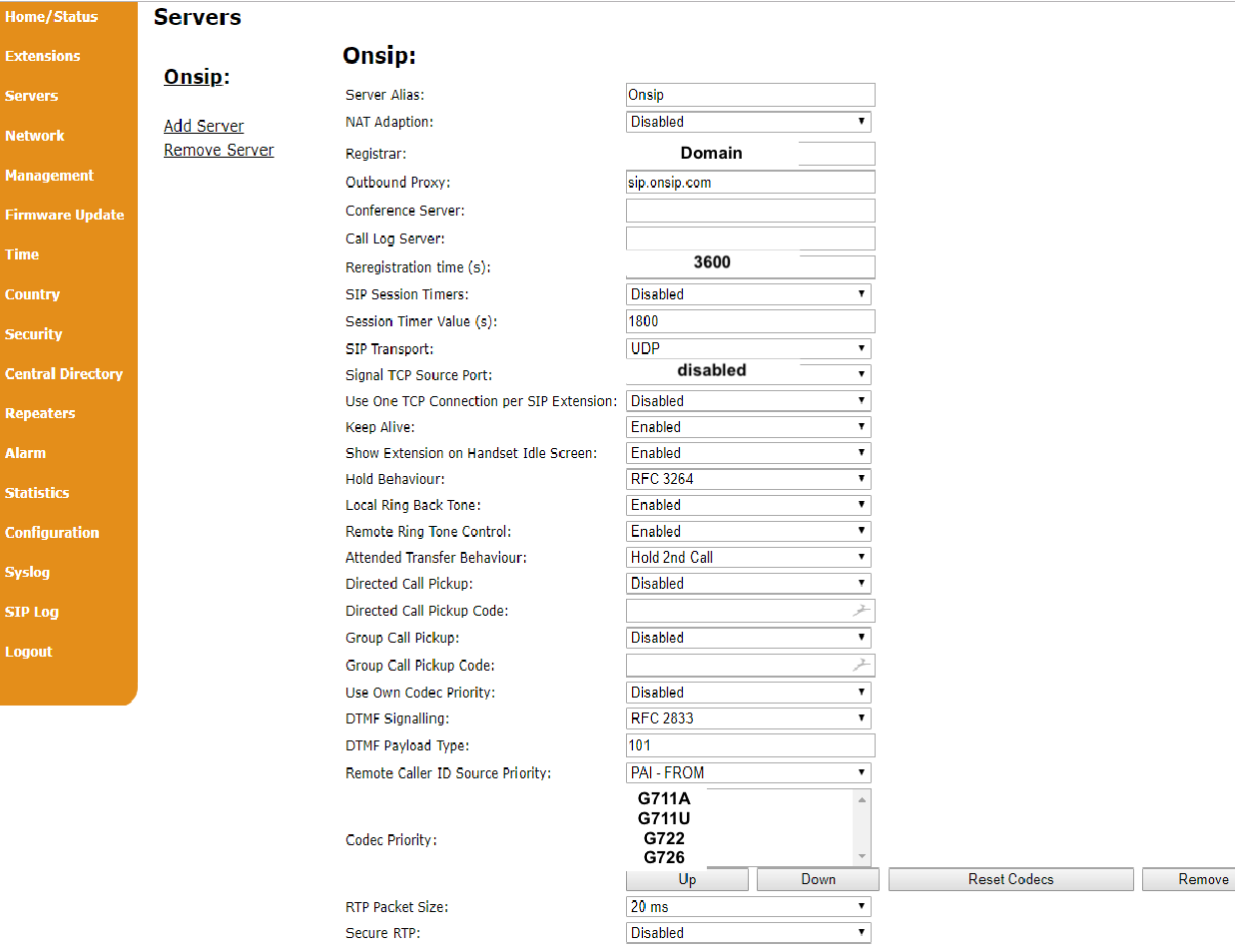

Servers

  • Server Alias > OnSIP
  • Registrar > Domain
  • Outbound Proxy > sip.onsip.com
  • ReRegistration Time > 3600
  • SIP Transport > UDP
  • Signal TCP Source Port > Disable
  • DTMF Signalling > RFC 2833
  • Codec Priority > G711a, G711u, G722, G726


Your Line Status will read: Registered and your User in User tab of OnSIP Admin Portal will show "Online"



Added October 2019
