Polycom VVX D60

Created: September 2016

Last Edited: July 2018

This phone is not available on our boot server.  It only works in conjunction with a Polycom VVX 3xx, 4xx, 5xx or 6xx phone.  It is not a stand alone device.

Click HERE for our phone review

Step 1: Connect Polycom VVX D60 Base Station to Network

The physical setup is quick and simple. You’ll want to connect the D60 base station to the network as outlined in the User Guide, and log into the web interface for your host VVX phone.

(High Level: Connect the PC port on the VVX desk phone to the LAN port on the base station via ethernet cable.)

First, enable the host Polycom VVX phone's web portal  in app.onsip.com >Administrators tab>Phones. Select the MAC address of the phone>Under Phone Info select "edit info" and choose Enable Web Interface then "Save changes".   Soft reboot host Polycom VVX (house icon -> settings -> basic -> restart).  ***Remember to reverse this step to re-secure your phone when you're done.***

To gain access to the web portal you must use https:// then type the IP address.  Your entry will look like this: https://192.168.x.x  (To get the phone's local IP address, on the phone itself choose Home/Status/Network/TCP)

Log in as: Admin

Password: Phone's Password also found in Resources with MAC address

Go to Settings -> VVX D60 (see image below)

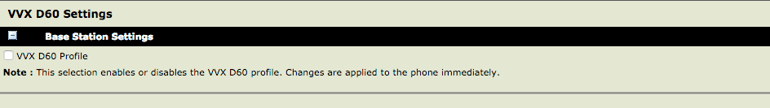

Polycom VVX D60 Base Station Setup

Step 2: Pair Polycom VVX D60 Base Station to host VVX

Select the checkbox to enable the VVX D60 Profile and select your pairing method from the drop down menu. We selected PC Port as it was the easiest for our testing purposes. Check the User Guide for information on Automatic and Manual Pairing. Hit the pair button, which should open up the handset settings.

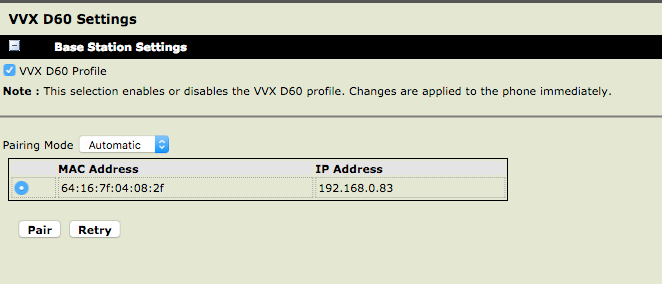

Polycom VVX D60 Base Station Setup

Step 3: Register handset to Base Station

On the wireless handset, navigate to Menu > Settings > Features > Registration.

Polycom VVX D60 Registered Handset

Step 4: Map Lines (As Needed)

If you have two lines registered, the host VVX will shuffle the second line over to the D60 Base Station. This means that calls to the second line will not ring on the host VVX at all; in fact, the host VVX will not even show that the line exists.

If you have multiple lines and multiple handsets, you can hit the Map Lines link on the Registration page to route lines appropriately.  Select "Save".

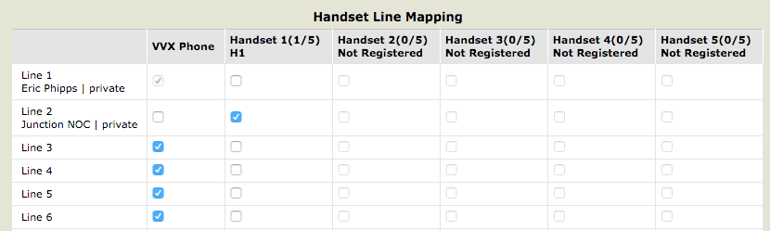

Polycom VVX D60 Handset Line Mapping

Once the base station is registered to the host VVX and the handset registered to the base station, you’re ready to make calls as needed.
