Phoenix Audio Spider VoIP Conference Phone




This device must be manually configured.  Do not add MAC Address to Resources.

Device Configuration

The information below is based on using firmware version 2.6.1

Step 1: Gather information for each user

Each user has a set of credentials which will be needed to configure each device. For each device that you are configuring, obtain the following:

  • "SIP Address" (Address of Record)
  • "SIP Password"
  • "Auth Username"
  • "Username"
  • "Domain"
  • "Outbound Proxy"

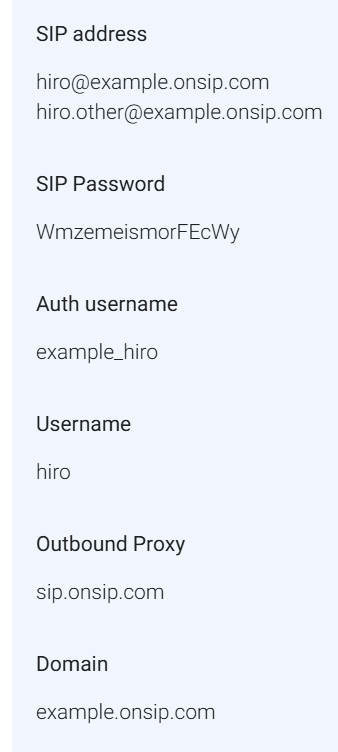

You can find this information in the "User" tab, click on User's name the device will be configured to expand boxes, "Phone Configuration" box:

Phone configuration section

Step 2: Log into your device through a web browser

Step 3: Enter your user information from Step 1

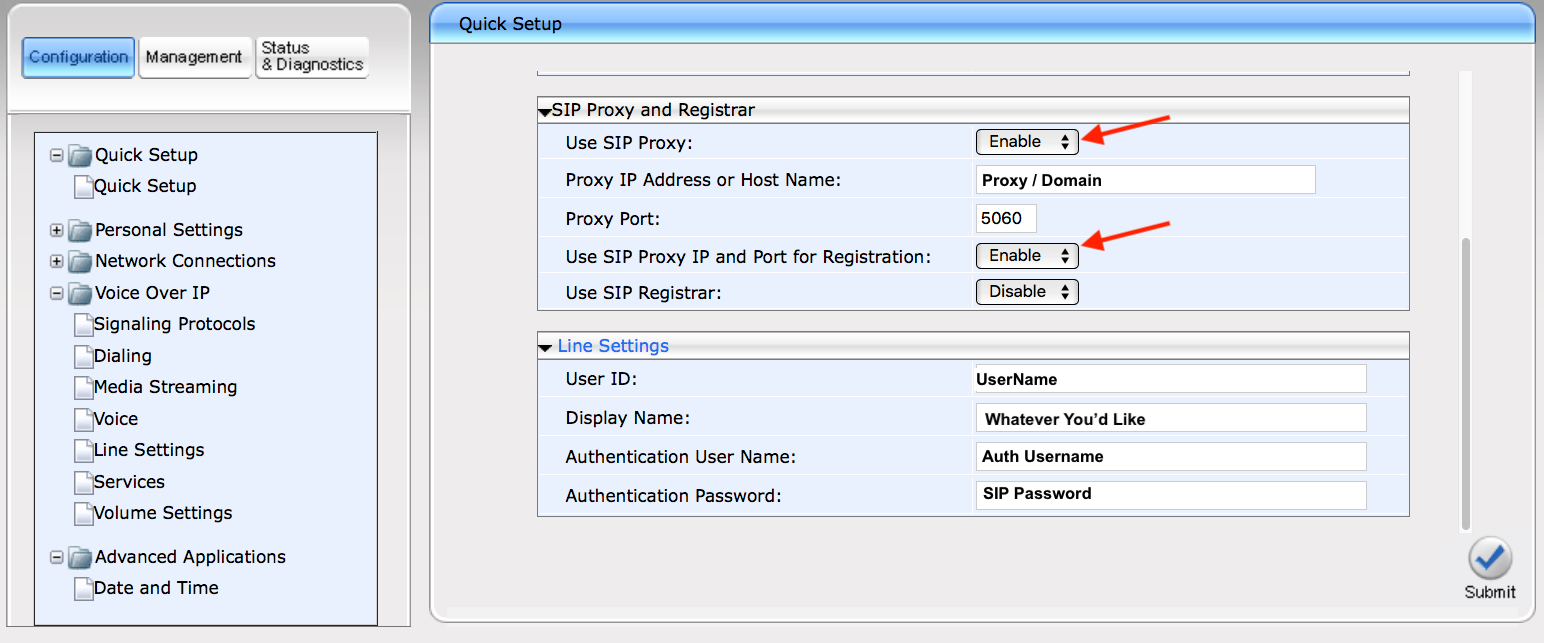

Configuration /Quick Setup / Voice Over IP / Advanced Applications

SIP Proxy and Registrar:

  • Use SIP Proxy > Enable
  • Proxy IP Address or Host Name > Proxy / Domain
  • Use SIP Proxy IP and Port for Registration >Enable

Line Settings:

  • User ID > Username
  • Display Name > Your Choice
  • Authentication User Name > Auth Username
  • Authentication Password > SIP Password




Step 4: Confirm that your device is registered

In the Admin Portal, click on the "Users" tab. You will see a green "online" notation next to each user with a registered device.

Added March 2018
