ZoIPER for Android

Check out our phone review - June 2017

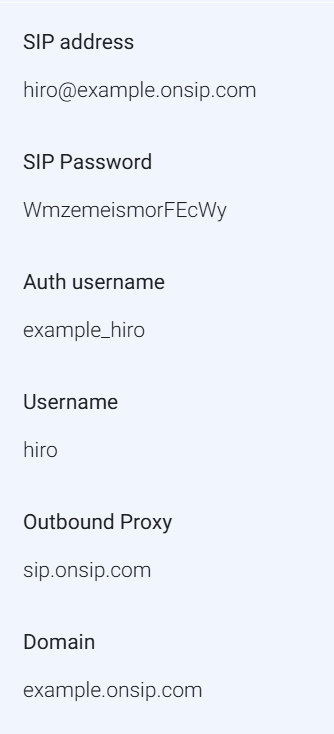

Step 1: Gather information for each user.

Each user has a set of credentials which will be needed to configure each phone. For each phone that you are configuring, obtain the following:

  • "SIP Address" (Address of Record)
  • "SIP Password"
  • "Auth Username"
  • "Username"
  • "Proxy/Domain"
  • "Outbound Proxy"

You can find this information in the user detail pages under the "Users" tab in your OnSIP Admin Portal.

Phone configuration section

Step 2: Download ZoiPerLite from the App Store.

Step 3: Configure OnSIP Hosted PBX user account information.  Enter in your credentials in the fields on these pages as follows:

  • Click on ZoiPER icon to open
  • Username@PBX/VoIP provider: SIP Address
  • Password: SIP Password
  • Click "Create Account"


Hostname / Provider: Domain (this may automatically populate; edit if incorrect)

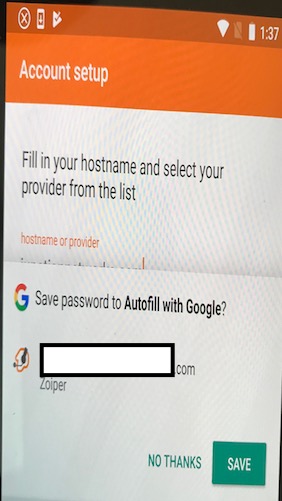

Select: NO THANKS for autofill with Google, if asked

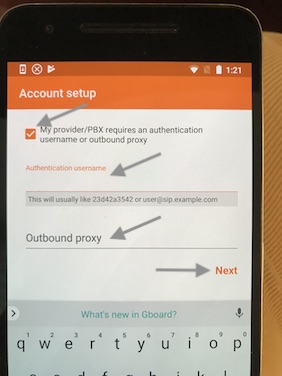

  • Put a checkmark in "my provider/PBX requires....."
  • Authentication Username: Auth Username
  • Outbound proxy: sip.onsip.com
  • Select: NEXT


  • Select: SKIP in lower right of your screen

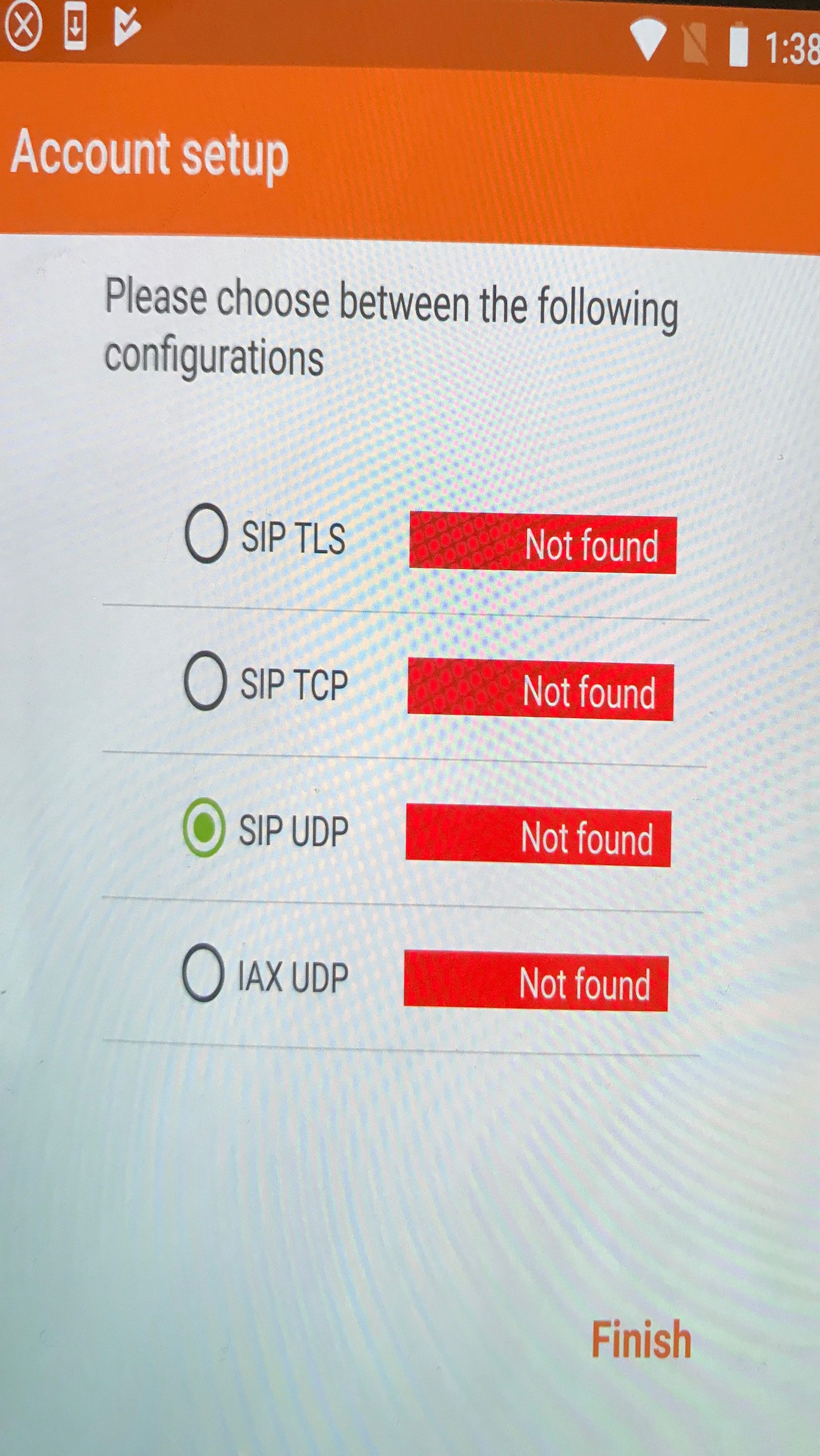

  • Select: SIP UDP, it will still say "not found"
  • Click FINISH

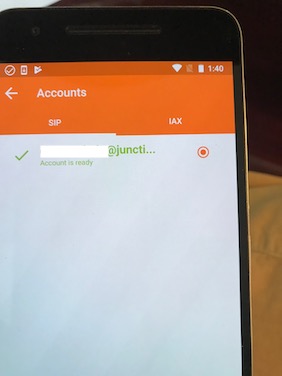

The device will display > Account Is Ready (in green).  Your device is now registered.


To log out/back into ZoiPer:

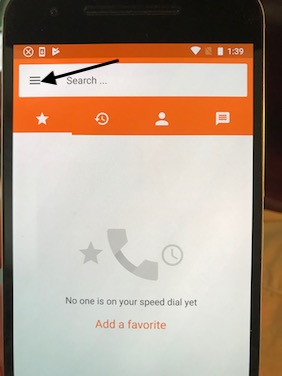

  • From home screen click on the three lines in the upper left

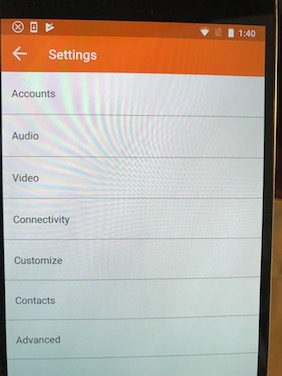

  • Click on Settings
  • Click on Account
  • Click on the Green checkmark, it will turn grey when done (opposite to turn back on)



ZoiPer_Android_Step4_Apr2018.jpg   ZoiPer_Android_offon_April2018.jpg

* Images are from ZoiPer 2.2.49 for Android / Library Version v2.8.83-mod - effective January 2018

* ZoIPER Lite is the Free version, while ZoIPER Pro is a fee-based app
