Prerequisites

Phone network configuration completed.

The following instructions assume your phone has successfully booted and completed network configuration including obtaining valid IP addresses for itself, an IP gateway and DNS servers either via DHCP, manual or other means (refer to your phone's documentation) and that your phone is running with factory defaults.

Step 1: Gather information for each user.

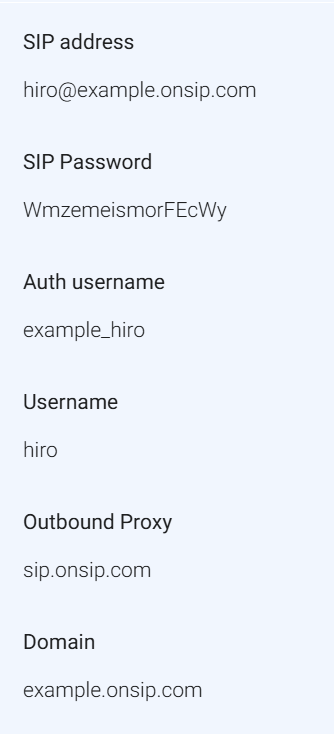

Each user has a set of credentials which will be needed to configure each phone. For each phone that you are configuring, obtain the following:

• "SIP Address" (Address of Record)
• "SIP Password"
• "Auth Username"
• "Username"
• "Domain"
• "Outbound Proxy"

You can find this information in the user detail pages under the "Users" tab in the "Phone Configuration" section.



Step 2. Create Obitalk Account
Go to https://www.obitalk.com/obinet/login/ and create an account.



Step 3.  Enter your user information from Step 1.

Under the "Generic Service Provider Home" heading:

• Configuration Name = Whatever you'd like
• Service Provider Proxy Server = Domain
• Service Provider Proxy Server Port = 5060
• Outbound Proxy Server = sip.onsip.com
• Outbound Proxy Port = 5060
• Username = Auth Username
• Password = SIP Password
• URI = SIP Address / Address of Record

Click "Save" Button and wait for OBiTALK device to load the new settings.

Step 4. Confirm that your phone is registered.

In the User portal, click on the "Users" tab. You will see a green "online" notation next to each user with a registered phone.



Note:  If the phone either does not register or is able to register, but unable to make outbound phone calls, factory reset the phone and re-enter the settings.
