Viking Paging Devices

OnSIP uses outbound proxy and authentication ID in addition to a username and password when connecting to the SIP registrar server.  Viking paging products PA-IP, 40-IP, and 40TB-IP can support those features with special software that can be obtained by contacting Viking Support (715-386-8666).

Other products can be special ordered with hardware and software to support the features needed to use OnSIP, contact Viking Sales (715-386-8861) for information.


This device must be manually configured.  Do not add MAC Address to Resources.

Step 1: Gather information for each user

Each user has a set of credentials that will be needed to configure each device. For each device that you are configuring, obtain the following from the User tab in your OnSIP Admin Portal:

  • "SIP Address" (Address of Record)
  • "SIP Password"
  • "Auth Username"
  • "Username"
  • "Domain"
  • "Outbound Proxy"

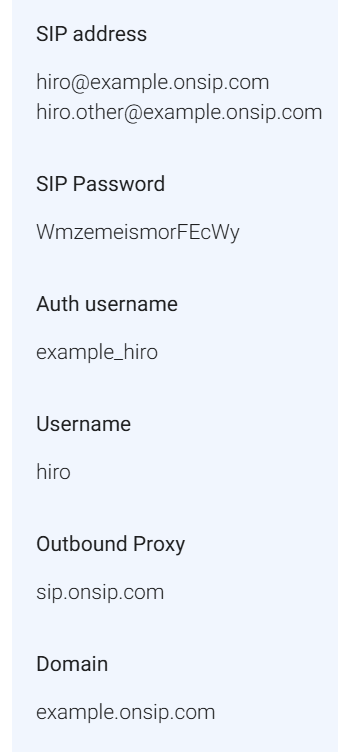

You can find this information in the "User" tab, click on User's name the device will be configured to expand boxes, "Phone Configuration" box:

Phone configuration section

Step 2: Log into your device

Step 3: Enter your user information from Step 1

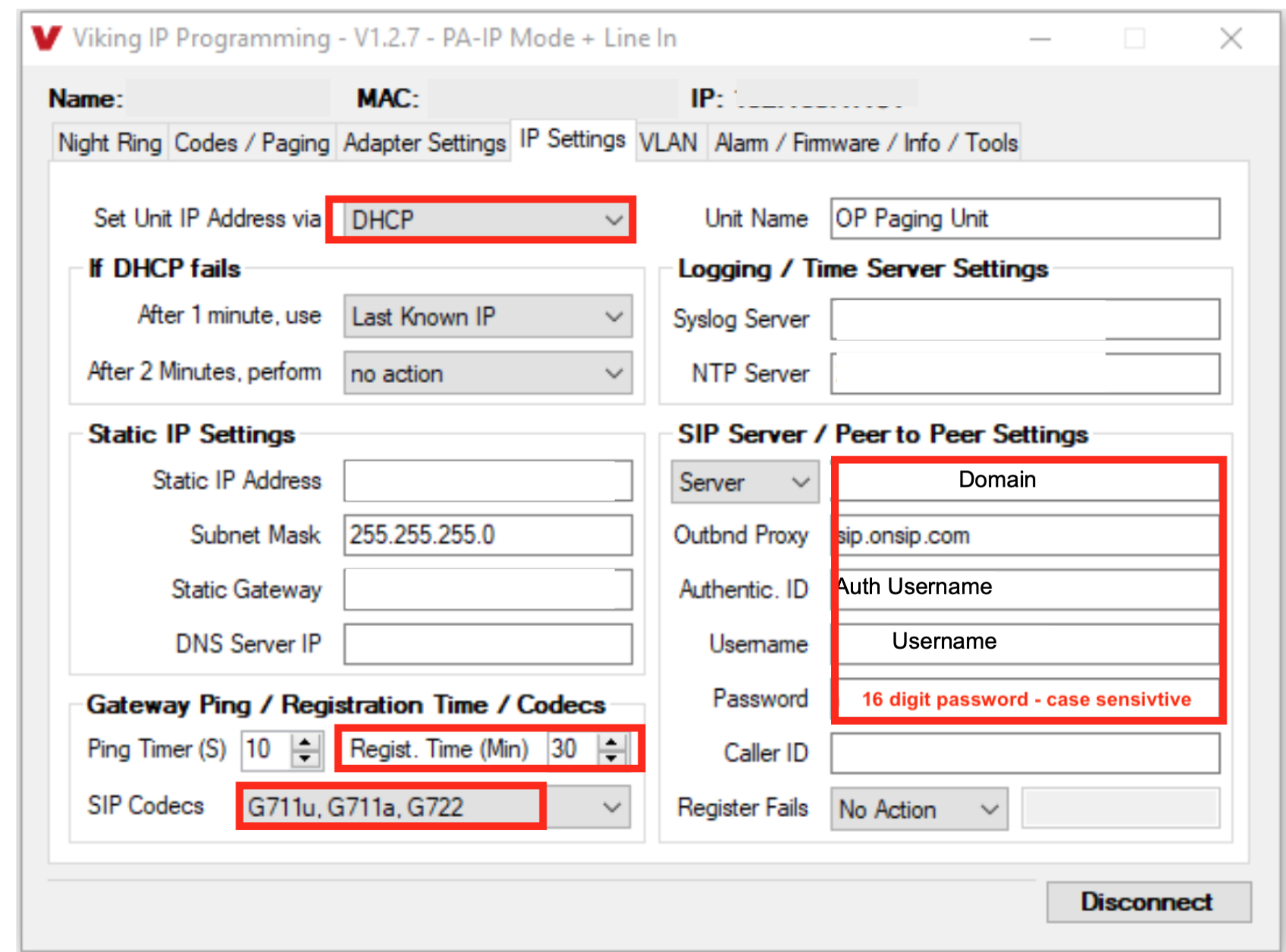

In the IP Settings tab:

Set Unit IP Address via > DHCP
Server > Domain
Outbnd Proxy > sip.onsip.com
Authentic ID > Auth Username
Username > Username
Password > SIP Password
Registration Time > 30 is ok, 60 is better

Codec Support :
Calls using PSTN: G711u and G711a
Calls using SIP only: G711u, G711a, and G722

Click Apply, then do an update and reset the device.

Your Line Status will read: Registered and your User in User tab of OnSIP Admin Portal will show "Online"

Created: 04/24/2018
Modified: 06/18/2020
