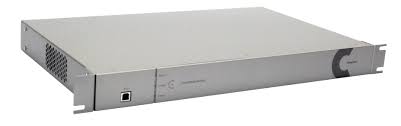

ClearOne Converge Pro2


This device must be manually configured.  Do not add MAC Address to Resources.

Device Configuration

The information below is based on the Converge Pro2, 128V, firmware 5.0.35.0

Step 1: Gather information for each user

Each user has a set of credentials which will be needed to configure each device. For each device that you are configuring, obtain the following:

  • "SIP Address" (Address of Record)
  • "SIP Password"
  • "Auth Username"
  • "Username"
  • "Domain"
  • "Outbound Proxy"

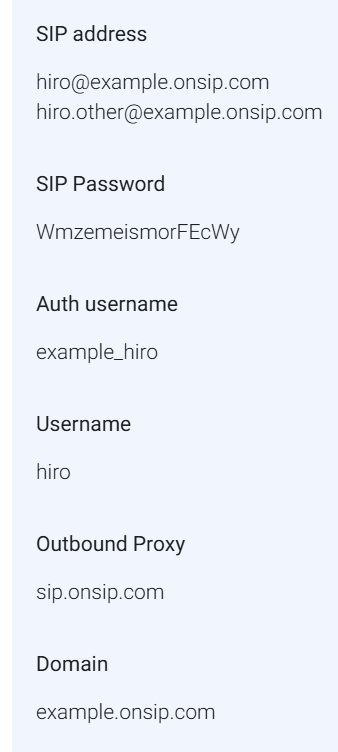

You can find this information in the OnSIP Admin Portal,  "User" tab, click on User's name the device will be configured to expand boxes, "Phone Configuration" box:

Phone configuration section

Step 2: Log into your device through a web browser

The default login is admin/admin

Step 3: Enter your user information from Step 1

Control Panel ->Stack ->Equipment ->VoIP tab ->VoIP/SIP

  • Configure VoIP for: VoIP/SIP
  • Send VoIP Traffic to: Ethernet Port

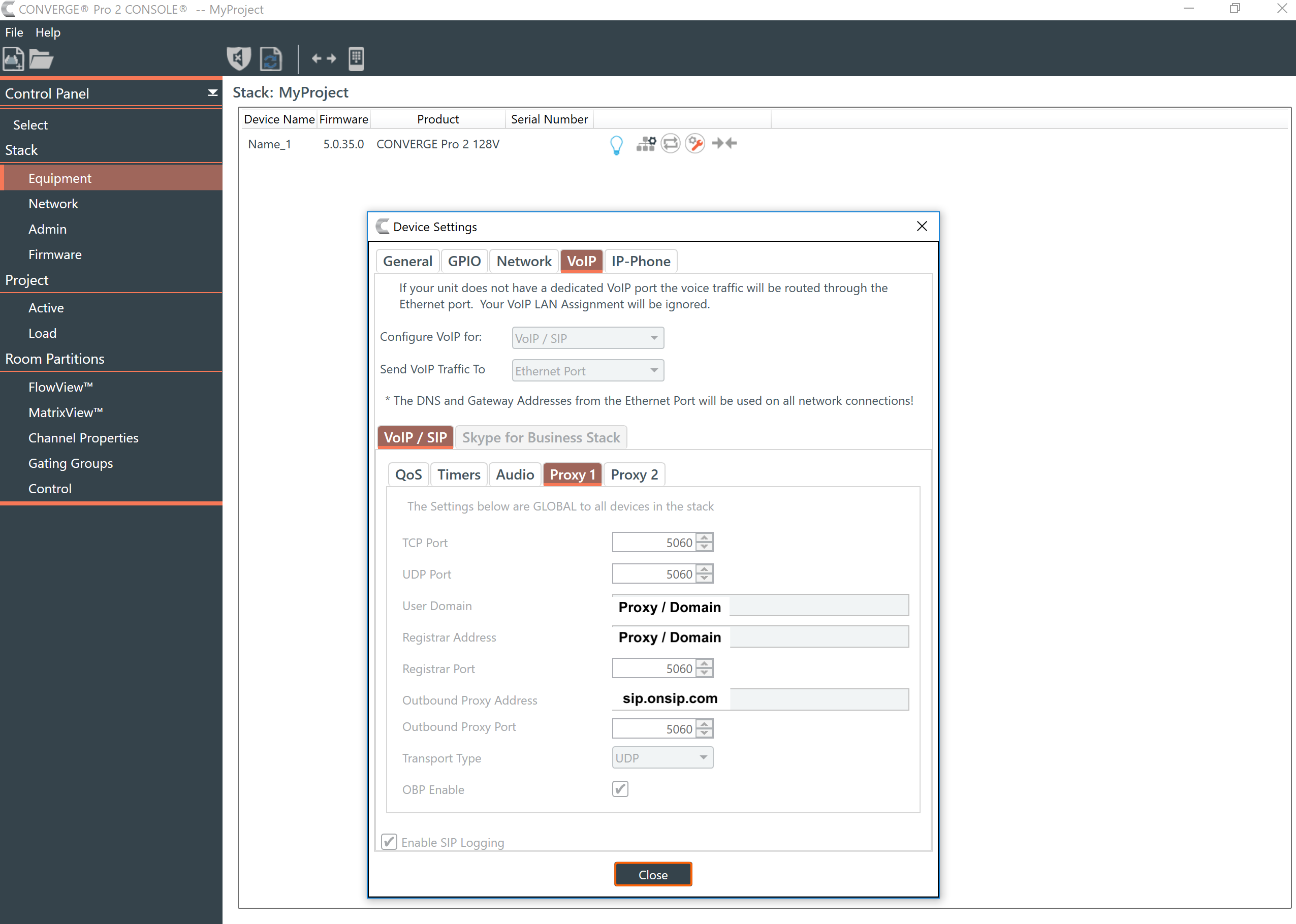

VoIP tab ->VoIP/SIP ->Proxy 1 tab:

  • TCP Port > 5060
  • UDP Port > 5060
  • User Domain > Proxy / Domain
  • Registar Address > Proxy / Domain
  • Registar Port > 5060
  • Outound Proxy Address >sip.onsip.com
  • Outbound Proxy Port > 5060
  • Transport Type > UDP

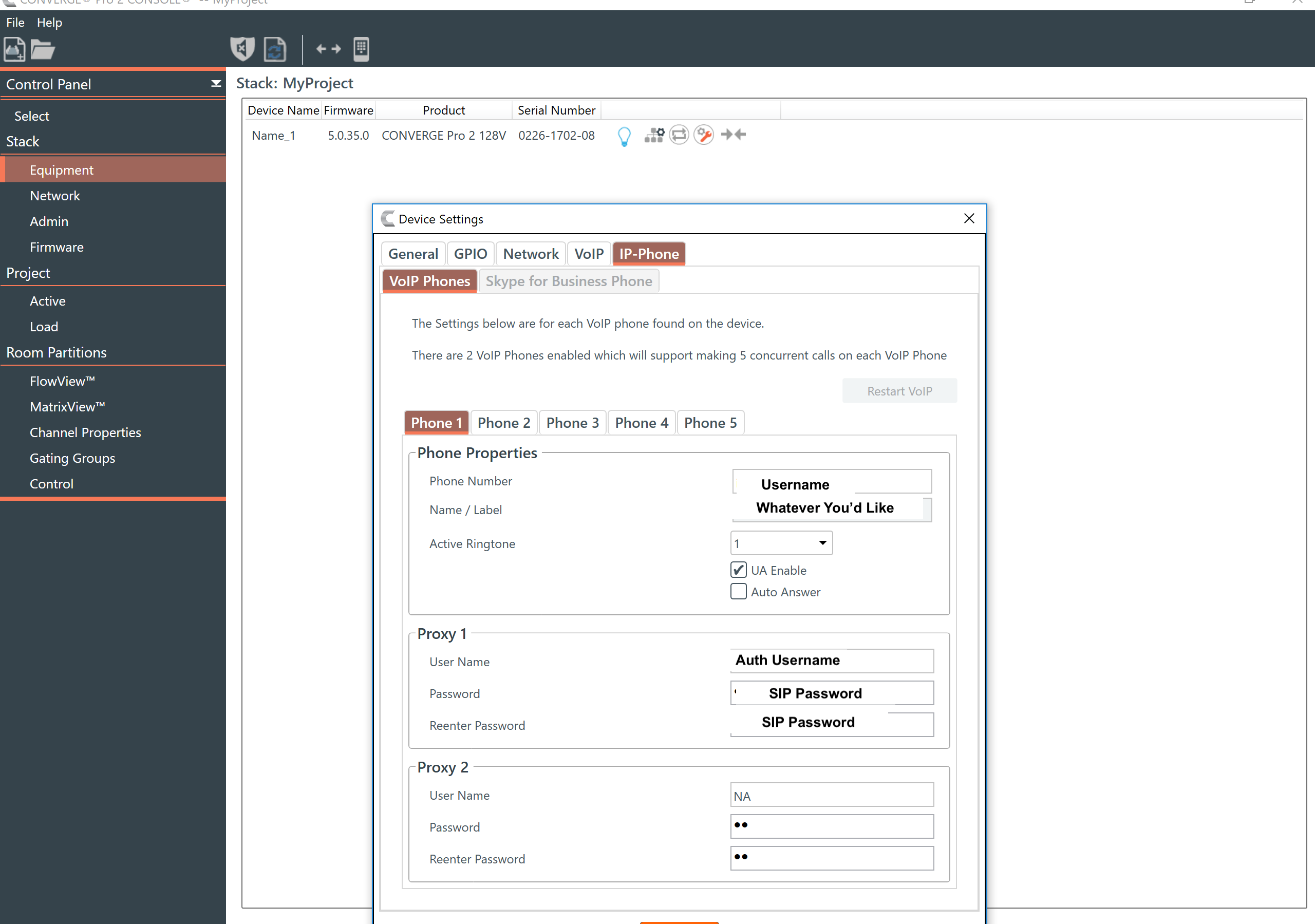

Equipment ->IP-Phone ->VoIP Phones ->Phone 1:

  • Phone Number -> Username
  • Name / Label -> Whatever you'd like
  • User Name ->Auth Username
  • Password -> SIP Password


Step 4: Confirm that your device is registered

In the Admin Portal, click on the "Users" tab. You will see a green "online" notation next to each user with a registered device.

Assistance outside of registering the device to OnSIP should be directed to the manufacturer.



Added July 2018
