ZoomRoom Integration

Requirements: Zoom Administrator account, Zoom Room Setup, OnSIP account

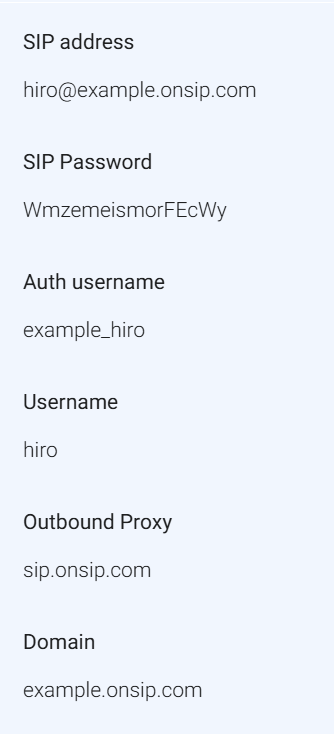

Step 1: Gather information for each User.

Each user has a set of credentials which will be needed to configure each phone. For each phone that you are configuring, obtain the following:

  • SIP Address (Address of Record)
  • SIP Password
  • Auth Username
  • Username
  • Proxy/Domain

You can find this information in the user detail pages under the Users tab in the Phone Configuration section of your OnSIP Admin Portal.

Phone Configuration

Step 2: Log into your Zoom portal (quick link)

Step 3. Enter your user information from Step 1

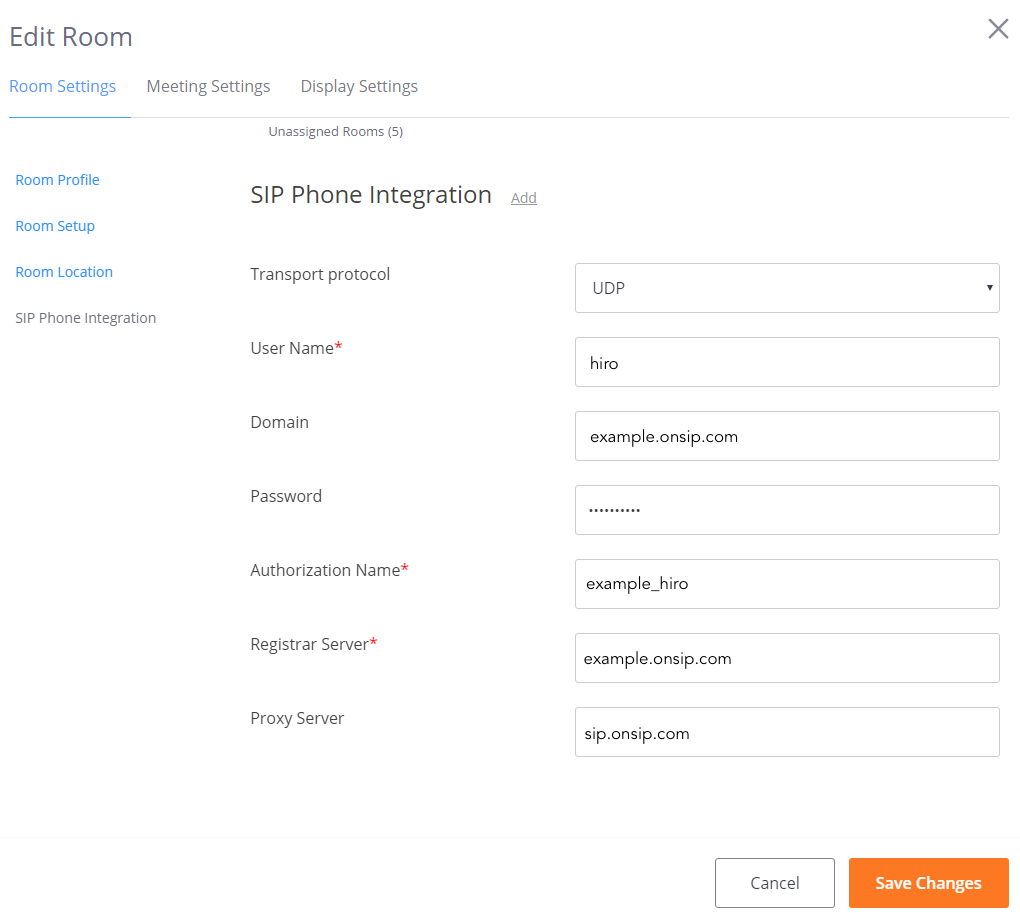

In the Edit Room >Room Settings >SIP Phone Integration = add >Fill in the fields:

* Transport= UDP
* User Name: Username (no domain)
* Domain: example.onsip.com
* Password: SIP Password
* Authorization Name: Auth Username
* Registrar server: example.onsip.com
* Proxy Server: sip.onsip.com
