Algo 8201

Step 1: Gather information for the User.

Each user has a set of credentials which will be needed to configure each phone. For each phone that you are configuring, obtain the following:

  • SIP Address (Address of Record)
  • SIP Password
  • Auth Username
  • Username
  • Proxy/Domain

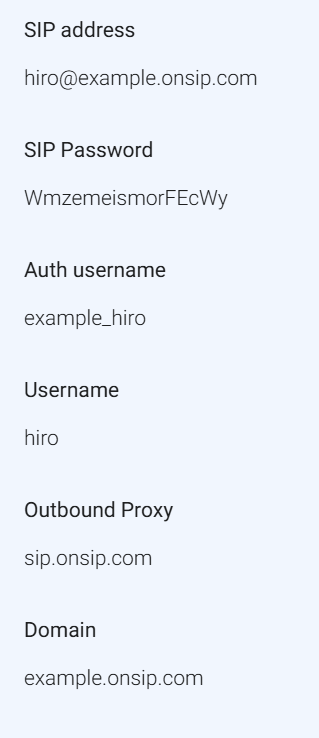

You can find this information in the user detail pages under the Users tab in the Phone Configuration section.

Step 2: Log into your Algo 8102 Speaker through a web browser

Finding the IP address

After boot up, the blue light will turn off and the speaker will have obtained an IP address. If there is no DHCP server the 8102 SIP speaker will default to the static IP address 192.168.1.111. Connect and hold the reset terminals (on the back of the unit) to hear the IP address over the speaker. The reset terminals will not cause a reset unless connected during power up. The IP address may also be discovered by downloading the Algo locator tool to find Algo devices on your network: www.algosolutions.com/locator

Basic Settings tab:

  • SIP Domain (proxy server): Domain
  • SIP Extension: Username
  • Authentication ID: Auth Username
  • Authentication Password: SIP Password
  • Display Name (optional): Whatever you'd like


Advanced SIP Settings tab:

  • Outbound Proxy: sip.onsip.com
  • Register/Subscribe Period(seconds): 3600
  • KeepAlive Method: Double CRLF
  • KeepAlive Period(seconds): 30
  • Save


added June 2019
