Valcom VIP-102B

OnSIP was provided the following information by Valcom.  We have not actually used them in-house.  If you need information on the functionality of these phones, please reach out to the phone manufacturer and/or their User Guide.

This device must be manually configured.  Do not add MAC Address to Resources.

Step 1: Gather information for each user

Each user has a set of credentials that will be needed to configure each device. For each device that you are configuring, obtain the following from the User tab in your OnSIP Admin Portal:

  • "SIP Address" (Address of Record)
  • "SIP Password"
  • "Auth Username"
  • "Username"
  • "Domain"
  • "Outbound Proxy"

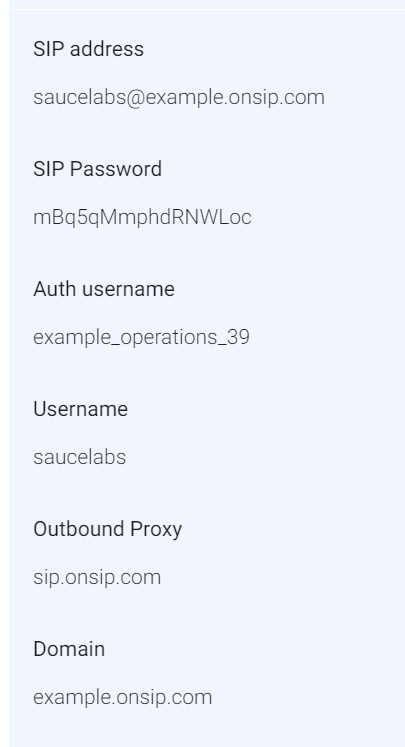

You can find this information in the "User" tab, click on User's name the device will be configured to expand boxes, "Phone Configuration" box:

Phone configuration section

Step 2: Log into your device

From the Valcom VIP-102B IP Solutions tool (download), scan the speaker in and access the SIP tab.

Step 3: Enter your user information from Step 1

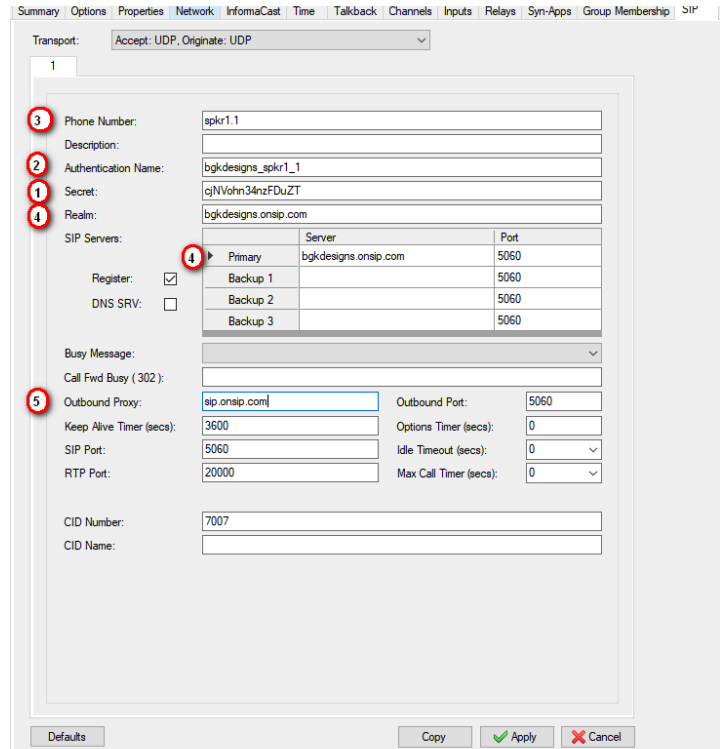

In the Network tab:

Transport > Accept: UDP Originate: UDP
Phone Number > Username
Authentication Name > Auth Username
Secret > SIP Password
Realm > Domain
SIP Servers - Primary > Domain
Outbound Proxy > sip.onsip.com


Click Apply, then do an update and reset the device.

Your Line Status will read: Registered and your User in User tab of OnSIP Admin Portal will show "Online"

Added November 2019
